Attic and envelope
Attic Insulation in Calgary
Axion Roofing air-seals the ceiling plane, restores soffit intake and tops up Calgary attic insulation to full depth and coverage, in that order, so R-value performs as rated.
Axion Roofing air-seals the ceiling plane before adding insulation to Calgary attics, because insulation slows heat transfer and does nothing to stop air movement. Blowing more cellulose over an unsealed attic raises the nameplate R-value and leaves the actual heat loss and the moisture problem in place.
01 / 06
The correct sequence, and why order changes the outcome
- 01Air-seal the ceiling plane. Seal the attic hatch, pot lights, plumbing stacks, wiring penetrations, top plates, chimney chases and bath fan housings.
- 02Fix exhaust terminations. Bath fans and dryer vents that discharge into the attic get rerouted through the roof or the wall.

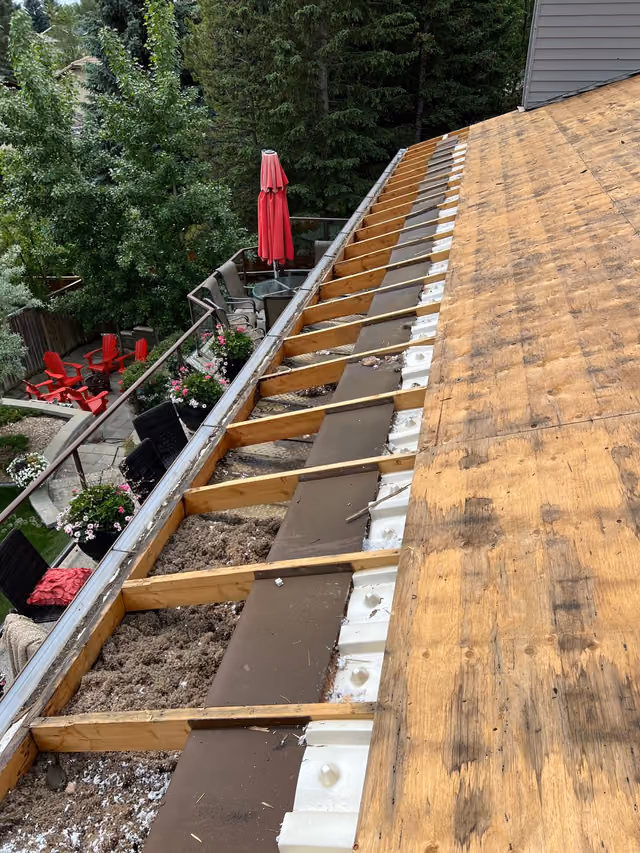

- 03Restore intake ventilation. Reopen soffit vents buried under existing insulation and install baffles to hold the required clearance at the eave.
- 04Insulate to full depth and full coverage. Coverage matters as much as depth. The perimeter above the top plate is where most Calgary attics run thin.
Reversing steps 1 and 4 makes winter moisture worse. Deeper insulation makes the roof sheathing colder, and colder sheathing collects more frost from the same leaking indoor air. That is the mechanism behind attic rain in Calgary.
02 / 06
Ventilation requirements Axion Roofing works to
The National Building Code, Alberta Edition, Section 9.19 sets the targets:
- Unobstructed vent area of at least 1/300 of the insulated ceiling area on standard slopes
- At least 1/150 on roofs with a slope less than 1 in 6 and on flat roofs
- At least 25% of the required openings at the top of the space and at least 25% at the bottom
- Openings distributed uniformly on opposite sides of the building
- At least 63 mm of clearance between the top of the insulation and the underside of the roof sheathing, with at least 25 mm of air space maintained at baffles
Axion Roofing measures the existing intake and exhaust against those numbers and reports the gap before quoting.
Order of operations
Air-seal, restore intake, then insulate

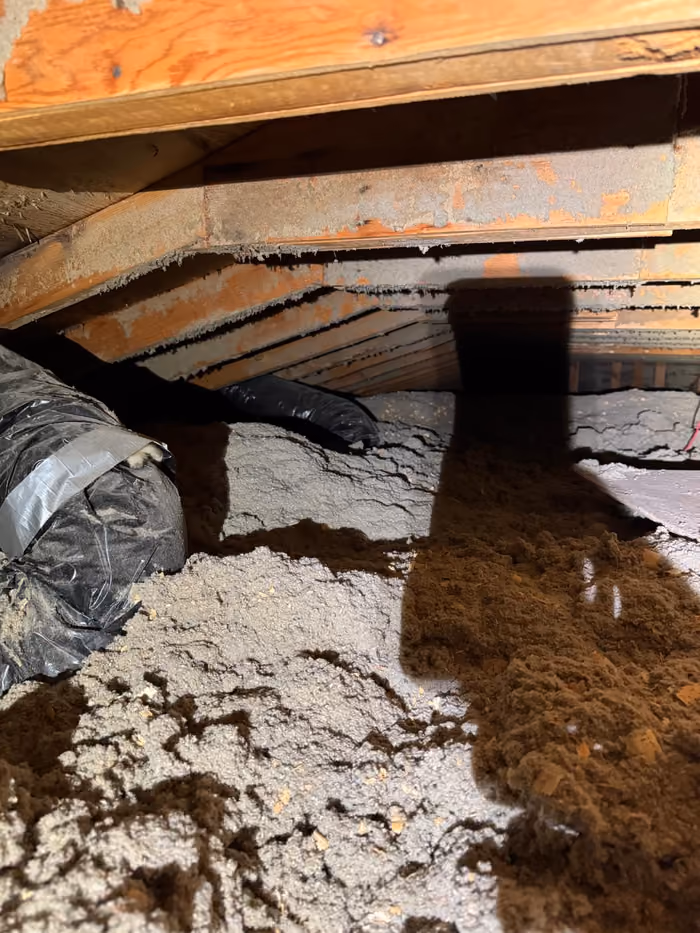

01Patchy loose-fill coverage. Depth alone does not deliver the rated R-value.
02Mixed cellulose and fibreglass in the corner, showing successive top-ups over the years.

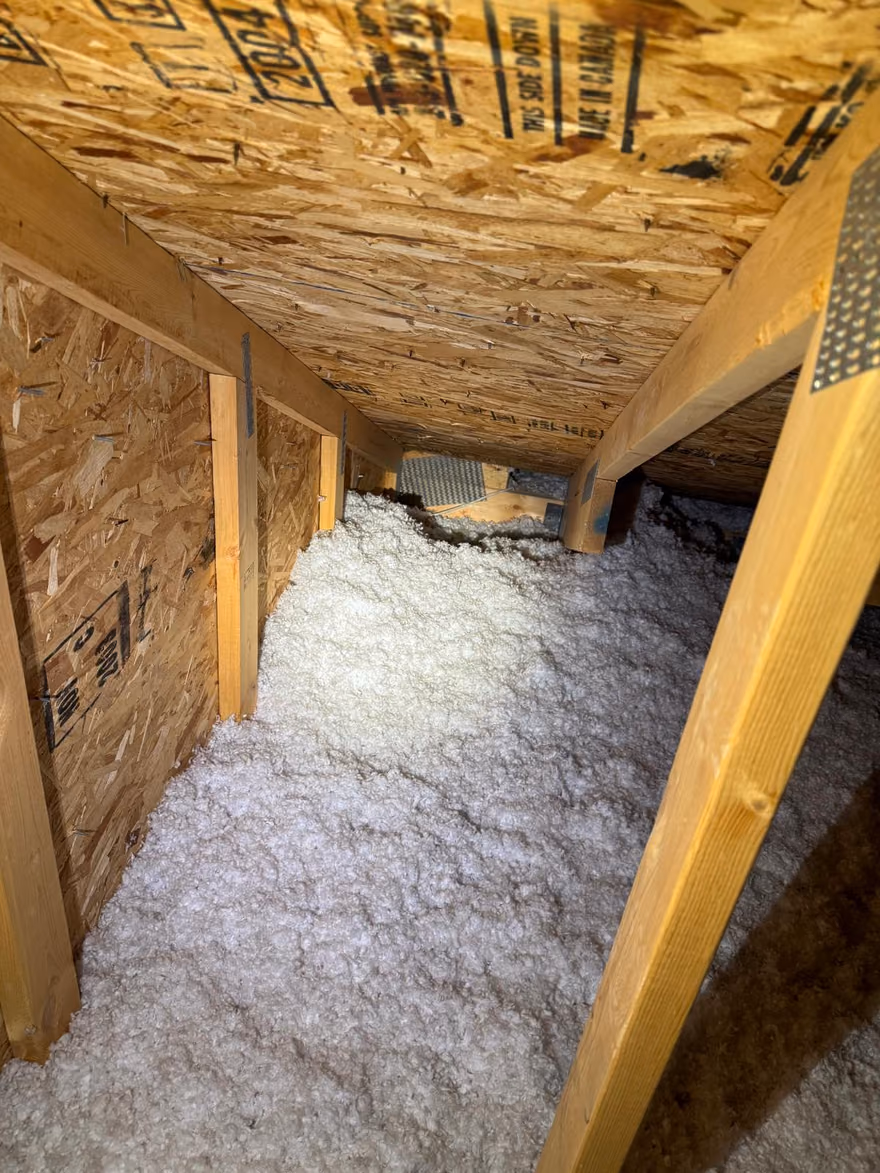

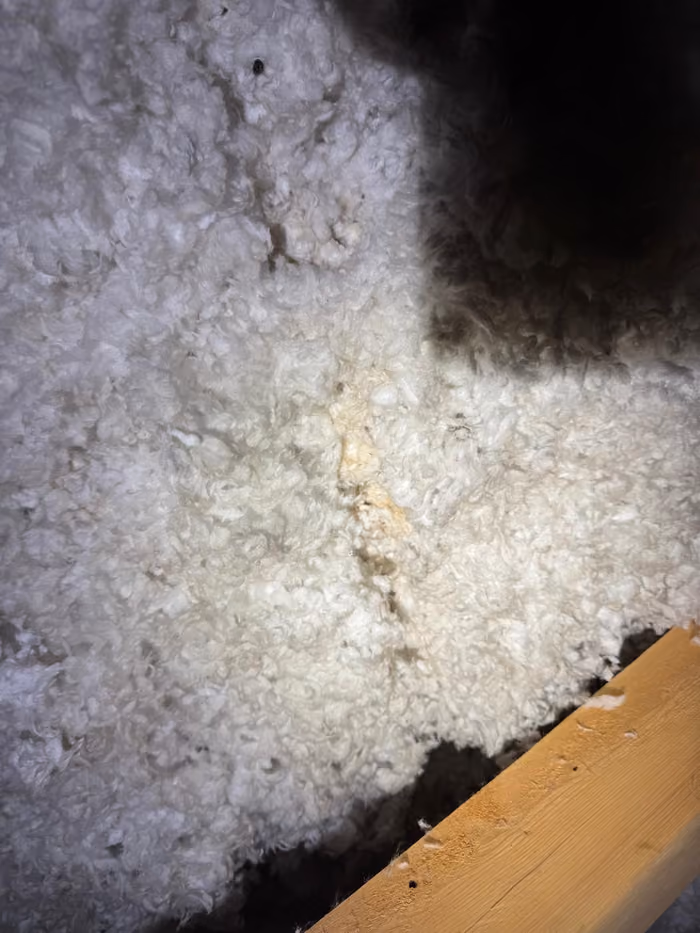

03Blown-in coverage between joists at full depth once the ceiling plane is sealed.
03 / 06
What Calgary attic insulation delivers
Air-sealing and insulating a Calgary attic reduces winter heat loss through the largest uninterrupted surface in the building envelope, cuts ice damming at the eaves by keeping the roof deck cold and uniform, and stops the frost-and-thaw cycle that soaks ceilings during a chinook. The comfort change shows up first in the rooms directly under the attic, which stop running several degrees colder than the rest of the house.
04 / 06
Why the roof job is the right time
The attic is accessible, the crew is already on site, and any sheathing damaged by past frost cycles is visible from above during tear-off. Axion Roofing schedules attic work alongside roof replacement in Calgary so soffit intake, roof exhaust, air-sealing and insulation depth all get corrected as one system instead of four separate visits.
From the jobsite
Inside a Calgary attic
Duct runs, exhaust terminations, baffles and the roof venting the whole assembly depends on.
Click any photo to enlarge

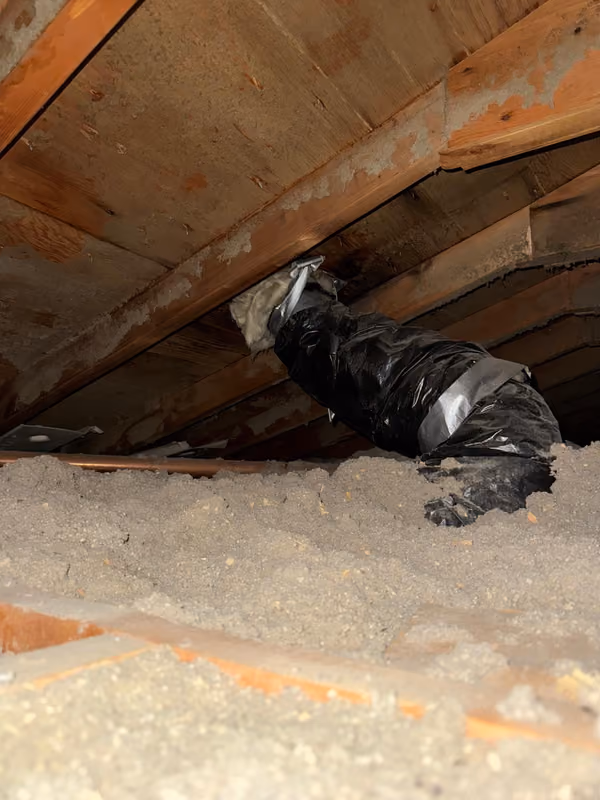

Flex duct buried in attic loose fill insulation

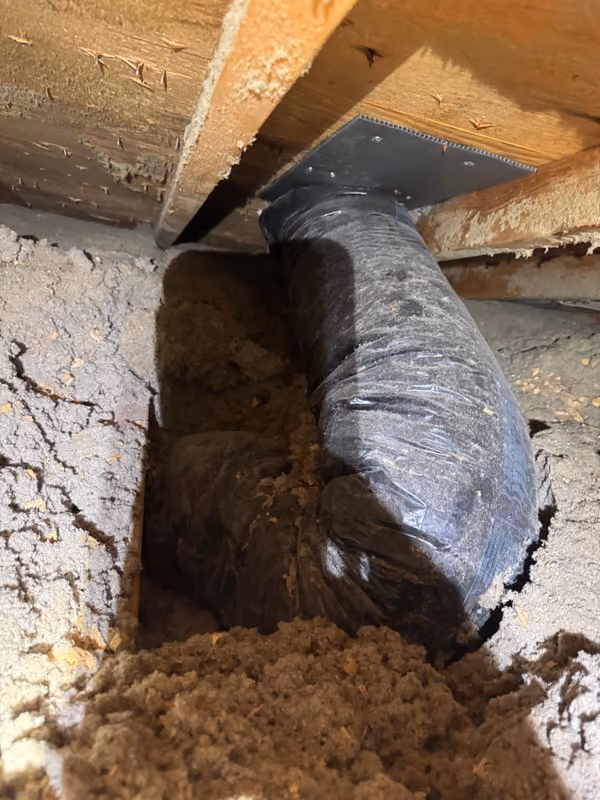

Insulated flex duct connection to roof vent in attic

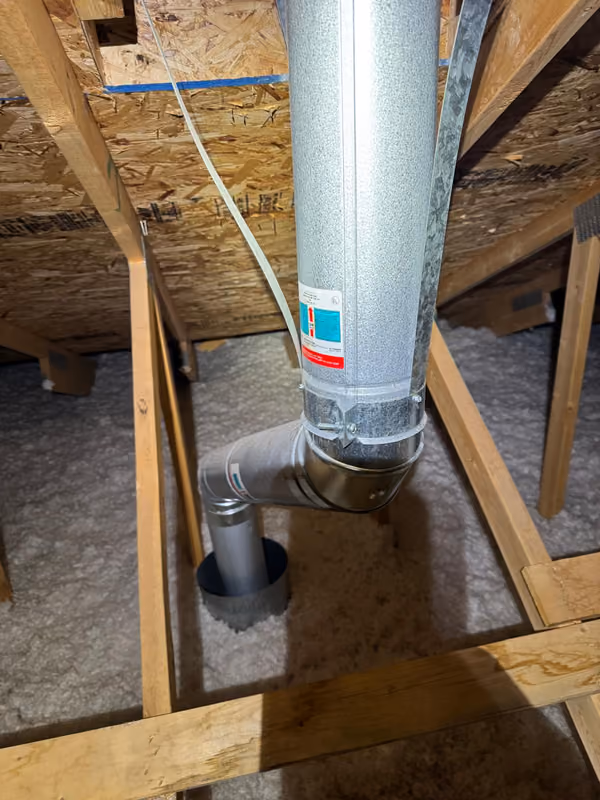

Metal exhaust duct elbow above attic insulation

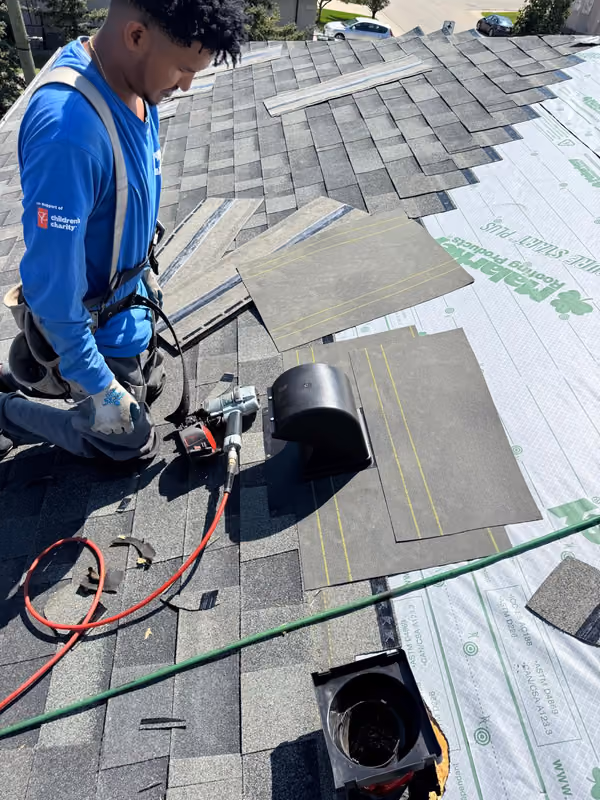

Roofer nailing roof vent onto underlayment
05 / 06
What Axion Roofing checks before quoting
- Existing insulation type and measured depth at the centre and at the perimeter
- Coverage gaps over the top plates and around the hatch
- Whether the insulation has been wet, which permanently reduces R-value
- Soffit intake blockage and baffle presence
- Exhaust vent count against the code ratio
- Bath fan and dryer terminations
- Knob-and-tube wiring or other conditions that restrict what can be installed
06 / 06
Rebates
Alberta and federal efficiency rebate programs change frequently, and eligibility usually depends on a pre-retrofit evaluation completed before work starts. Confirm the current program terms before booking, because a retrofit started early can disqualify itself.
Book a free attic and roof assessment in Calgary, or review everything Axion Roofing handles on Calgary roofs and attics.
Sources
- National Building Code, Alberta Edition, Division B, Section 9.19 Roof Spaces.
